Protimeter Digital Mini Moisture Meter

Protimeter Digital Mini
Digital pin type moisture meter designed for general purpose moisture detection

Protimeter Digital Mini Moisture Meter
Protimeter Mini Moisture Meter with 2-year warranty

Protimeter Digital Mini Moisture Meter Brochure



The Protimeter Digital Mini is a digital moisture meter designed help building professionals access building moisture levels during new building and refurbishing activities.

Features and Benefits
Simple to use
Simple moisture readings
Durable and rugged design
Colour changing LEDís to show moisture condition
Reference Mode compares measurements in a building

Reliable Moisture Measurement
The Protimeter Digital Mini moisture meter is a reliable moisture meter has a pin type measurement function and shows results on the large digital display. The user can interpret the moisture level at a glance
through the colour-coded LED scaled display.

Moisture Mode Pin-Type
Pin mode is used to measure the moisture level at the surface by measuring the resistance of the material between the two pin electrodes. Measure mode readings are precise and specific to the contact area of the electrodes that are used.

The Protimeter Digital Mini is calibrated for wood, so displays the actual percent moisture content when used on wood. When used to measure the moisture levels of materials other than wood, such as plaster or masonry, the instrument displays the Wood Moisture Equivalent (WME) value of the material.

The colour coded LEDs are synchronised with the digital display to provide information on the moisture condition of the material at the point of measurement.

The numerical values represent the actual percent moisture content of wood (% MC) and the wood moisture equivalent (WME) of concrete, dry wall and other materials. The Protimeter Mini can be used to determine if the fabrics of a building are in a Dry, Borderline and Damp.

Measure Moisture Below The Surface
Sub-surface measurements can be obtained by using the Protimeter Digital Mini with optional probes, such as the Hammer Electrode for wood, Deep Wall Probes for solid walls and the EIFS probe for exterior insulation and finishings systems.

2-Year Warranty
As Protimeter's Premier dealer, we are proud to offer an upgraded no quibble 2-year warranty on this instrument. Click for more information.


Specifications
Measurement Range
(%WME)
7.9% to 99%
numerical label
Display Digital Large digital LCD backlit
Display LEDs Dry (Green LEDs) - 7.9% to 16.9%
At risk (Yellow LEDs) - 17% to 19.9%
Wet (Red LEDs) - 20% to 99.9%
Power 9V battery (included)
Weight 225g
Dimensions (mm) 190 x 70 x 49

Protimeter Digital Mini
Model: BLD5702
Supplied with:
+ Extension pin probe
+ Calcheck device
+ 2 x Spare pins
+ Pouch with belt loop
+ 9v Battery
+ Operators Instructions
+ 2-Year Warranty
+ FREE Delivery
+ FREE Memory Stick
Price: £170.00
ex VAT

List price: £170.00

Price: £204.00 incl VAT


Protimeter Mini Moisture Meter

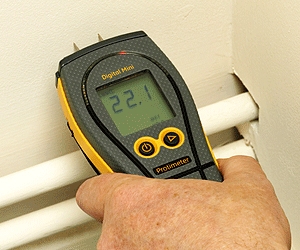

Protimeter Digital Mini Moisture Meter Protimeter Digital Mini is used to measure the moisture level at the surface of walls and structures

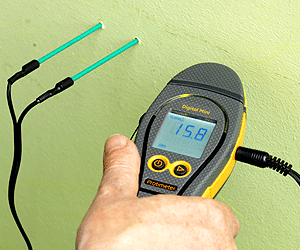

Protimeter Digital Mini Moisture Meter Protimeter Digital Mini using to measure at depth in solid and composite walls
Protimeter Digital Mini Moisture Meter Protimeter Digital Mini measuring a wooden structure with extension pin probe
