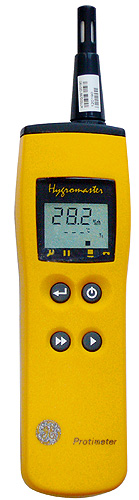

The Protimeter Hygromaster is a hand-held instrument for taking spot measurements, logging humidity and temperature values. Quick spot measurements of relative humidity, dew point, mixing ratio and ambient temperature are shown on a split display at the touch of a button.
Features and Benefits
Large clear LCD display
Detachable sensor - measure the ERH value of walls and floors
Relative humidity %RH
Dew point temperature
Mixing ratio/absolute humidity/grains per pound
Surface proximity to dew point
Investigating dew point or condensation conditions
HygroStick or Quickstick options
Hygrostick measures humidity in the 30-100% rh range and may be used with Protimeter humidity sleeves that are used when measuring the equilibrium relative humidity of solid walls and floors.
Quickstick features a fast responding sensor with a range of 1-100% rh making it more suitable for general air quality applications, including outputs from dehumidifiers and HVAC systems.

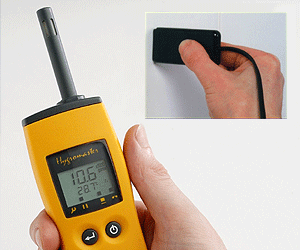

Surface temperature measurements can also be measured with an optional surface temperature sensor, making this instrument especially suitable for condensation risk assessment and diagnosis.
Measuring Concrete Floors
There are two methods available to measure the ERH levels of concrete floors which complies with BSI standards.
1. Surface Kit - Model BLD7703
Foam block is placed on the surface of the floor, the hygrostick is pushed into the hole on the side to measure the ERH of the cavity within.
2. Sub-Surface Kit - Model BLD7705
This combination is utilised with the humidity sleeves for measuring the ERH readings of solid floors and walls. They are inserted into pre-drilled holes to create an air pocket for measuring with a Hygrostick.
The Protimeter Hygromaster has a data-logging mode to meet this requirement. The user sets the instrument to record measurements as required and leaves it in place for the required period of time.
The memory contents are then downloaded directly to a PC in real time using optional software where the logged measurements are displayed in tabular and graphical form. The datacapture software and download cable (kit BLD7712) should be ordered speratly.
As Protimeter's Premier dealer, we are proud to offer an upgraded no quibble 2-year warranty on this instrument. Click for more information.
|Hygrostick Data (Nominal)||30% to 40% RH (±3% RH)
41% to 90% RH (±2% RH)
|Quikstick Data (Nominal)||0% to 10% RH (±3% RH)
10% to 90% RH (±2% RH)
90% to 100% RH (±3% RH)
|Display||Digital LCD display|
|Power||2 x AA batteries
