Protimeter Surveymaster is a dual mode moisture meter which allows the user to distinguish between sub-surface and surface moisture. Essential information when trying to establish the extent and cause of a dampness problem.
Features and Benefits
Durable and rugged design
Measure mode - Direct two-pin measure %WME
Search mode - Non-invasive measuring - no pin marks left
Detects moisture directly in materials
Detects moisture below wall / floor coverings (tile, wood, vinyl)
Dual Display LCD and LED
Color changing LEDís to show moisture condition
Reset reading for sensitivity adjustment
Not adversely affected by surface moisture such as condensation
The Protimeter Surveymaster incorporates two modes of operation - Measure and Search.
This combination enables the user to distinguish surface moisture from sub-surface moisture,
essential information when trying to establish the extent and cause of a dampness problem.

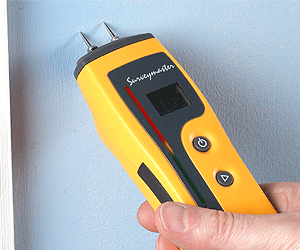

Utilising the two-pins at the top of the instrument, a direct reading of the moisture level can be read. The numerical values displayed in the LCD display represent the actual percent moisture content of wood (% MC) and the wood moisture equivalent (WME) of concrete, dry wall and other materials.
Optional hammer electrode and deep wall probes can be used with the Surveymaster to measure the moisture level at depths in walls and floors, regardless of the surface condition. These options are useful accessories when investigating the cause of moisture problems within buildings.

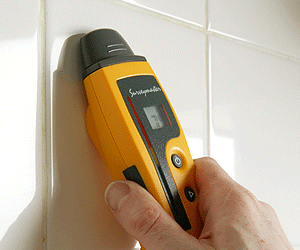

Search Mode (non-invasive)
Measures moisture beneath the surface without drilling holes to a nominal depth of 0-20mm. Hold against the wall to allow a radio signal to penetrate the surface. This is the best method for assessing the moisture content beneath a tiled / covered surface. The relative moisture level of the material under investigation on a scale of 0-999.
The Protimeter Survymaster features two displays that are synchronized, a digital LCD display supported by a colour-coded LED scale.
The LCD display shows the digital readings for both the measure and search modes. The colour coded LED scale indicates the materialís moisture condition, helping to support the readings. This provides a very simple way to determin if the readings are Dry, Borderline and Damp.
As Protimeter's Premier dealer, we are proud to offer an upgraded no quibble 2-year warranty on this instrument. Click for more information.
- Pin measurement
7% to 99% WME
0 - 999 REL (relative)
|Depth of Measurement||Non-invasive up to 19 mm
Pin up to 12.7 mm
|Display 1||Digital LCD display|
|Display 2||60 LEDs -
yellow (at risk)
|Dimensions (mm)||175 x 30 x 48|
